First JAA Level-D Certified Dual-Lamp Desktop DLP projector

Highest digital projector contrast using Dual Iris Control

Total Motorised Alignment of Focus / Zoom / H & V SHIFT !

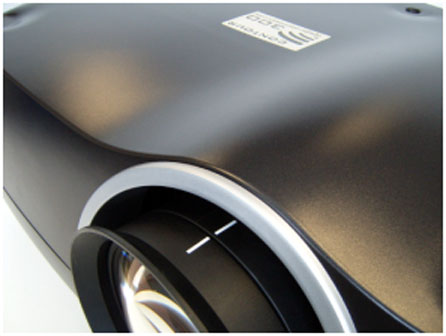

Contour 300 TM series Projector is the best performing Single Chip DLP projector in its price range, offering image quality and functionality for professional applications including visualisation and simulation, medical imaging, control rooms and 24/7 installations.

With its dual lamp configuration Contour 300 TM can output up to 5000 ANSI Lumens. User control of single/dual lamp operation and lamp power enables lamp time configuration between 2000 and 8000 hours. Another key feature of the Contour 300 TM is the motorised Iris control, an essential requirement for contrast critical applications achieving up to 5000: 1 contrast ratio.


Native resolution is 1400 x 1050 (SXGA+) and a large number of lens types are available, with horizontal and vertical shift control for multiple projector applications.



0.8 : 1 Fixed, on axis (minimal shift for stacking) wide angle for rear applications
1.2 : 1 Fixed, shiftable, wide angle for CRT retrofit and other short-throw applications
1.3 - 1.7 : 1 Short zoom, shiftable
1.7 - 2.5 : 1 Standard zoom, shiftable
2.5 - 4 : 1 Long throw zoom, shiftable
4 - 7 : 1 Very long throw zoom, shiftable

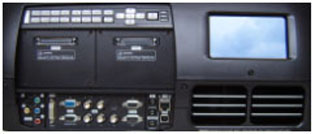

Contour 300 TM has a wide range of connection options including 5x BNC (RGBHV), 1x HD-15, 1x DVI-D, 3x RCA and 1x S-video 4-pin Mini Din and 2 auxiliary front- and back-end processor slots. Inputs and all other projector controls may be accessed through the Infrared remote control including aspect ratio, brightness, colour and service controls. The remote control also contains a built-in laser pointer and is designed to avoid disturbance from fluorescent tubes. There are hardwire connections via LAN and RS232 serial interfaces for direct multi-projector control from PC using the Equipe Contour Multi-Projector control GUI.

Contour 300 TM is designed to partner with Equipe ProMap TM Edge Blend, Geometry and Colour Correction system. This enables use of curved projector screens or any applications where precise multi-projector geometric alignment is required. The Equipe Promap series is a well-established product for demanding applications with minimal delay and highest quality of geometric mapping.
