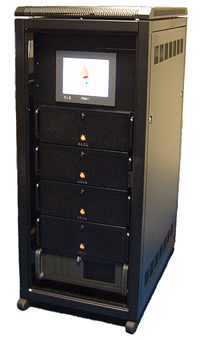

Generation10 TM Image Generators with BlueSky TM Real-Time Software

Incorporating multiple CPU and GPU processing cores, the latest Generation10 TM Image Generators from Equipe offer the highest 'polygon per dollar' count in their class.

Taking full advantage of leading-edge graphics technologies, Equipe G10 TM with BlueSky TM delivers uncompromising performance and features to power the most demanding of simulation applications.

System Architecture

  • Up to 64 hardware gen-locked channels
  • Up to 4GB system memory
  • Up to 1GB graphics memory
  • Programmer's API for customisations
  • Multiple Independent Views
  • Overload management
  • Control Center runs on remote Windows PC
  • Vehicle route record & playback
  • Round Earth terrain system using WGS84 datum
  • Ethernet, reflective memory and other host interfaces
  • Pixel-based non-linear mapping (ProMapTM) built-in option
  • Touch panel operation & diagnostics
  • Performance

  • Rock Solid 60Hz Update Rate
  • 54 billion textured pixels per second (peak) per channel
  • Full-screen antialiassing, up to 8 sub-samples plus super-samples
  • Display resolution up to 1920 x 1920 per channel
  • Exceeds FAA / JAA Level D standards
  • Fully utilizes latest Shader technologies
  • Anisotropic texture filtering, up to 16x
  • Environmental

  • Visibility range configurable up to 250 NM
  • Up to 4 cloud layers, solid or variable patchiness
  • Wet & snow-covered runways
  • Automatic snow-covered terrain related to precipitation
  • 3D fluffy clouds, individually controllable
  • Thunderstorm cell, lightning flash & bolt
  • Volumetric ground & patchy fog
  • Light-point glare & halos in fog plus burn through
  • 3D physics-based dynamic ocean for sea states 0 through 9, including whitecaps
  • 3D physics-based dynamic ocean with sun and object reflections

    Landing lights and storm cell (thunder clouds & lightning bolt)

    Lighting

  • Multiple landing lights, steerable
  • Airfield lighting systems including VASI, PAPI & strobes
  • Host-controlled lights & animations
  • Environmental lights, auto-switching
  • Continuous time of day and time of year with sun, moon & stars
  • Dawn & dusk horizon glow
  • Ultra-realistic floodlighting
  • Database & Models

  • Continuous multiple LOD terrain
  • Terrain & texture paging supports very large (continental) geographical areas
  • Up to 250 moving models, each with articulated parts
  • Capable of rendering vast numbers of point features (trees, buildings, lights, etc.)
  • Fully integrated with Equater modelling toolset
  • Part of Equipe's European Alpine Database

    Floodlighting and directional horizon glow

    Special Effects

  • Smoke & contrails for aircraft and missiles
  • 3D volumetric animated explosions for air, ground & water
  • Bump mapping & multi-texturing
  • Ground shadows of dynamic objects
  • Fire and wind-driven smoke plumes
  • Rotor downwash and dust over land & sea
  • Simulator Support

  • Collision detection
  • Line of sight and laser range finding
  • Multiple reference points for Height Above Terrain (HAT) and Height Of Terrain (HOT)
  • Sensors

  • Multi-spectral FLIR & NVE (simulated or stimulated)
  • Manual gain & offset or AGC
  • Simulated noise (static & dynamic)
  • Vibration & stabilization
  • Integrated HUD
  • Infrared option

    Simulated NVE option

    Display Configurator on Windows

    Control Centre

  • Provides total control of the IG environment
  • Powerful and intuitive graphical user interface
  • Allows user to fully command the system
  • No complex configuration files
  • Runs on a standard Windows platform
  • Connects to G10 via a standard LAN
  • Comprehensive context-sensitive on-line help
  • New Project Wizard
  • 3D Display Configuration
  • Database Selection
  • Interactive Moving World Map
  • Project Verification
  • Project IG Start/Stop
  • Environment Control (weather conditions, TOD, etc.)
  • On-line Control of all entities / properties
  • User-defined Control Pages for demos, etc.
  • Import / Export QUIL Scripts
  • Network Packet Tracing
  • Round-Earth co-ordinate support
  • Integrated Basic Flight Model
  • For more information about Control Centre click here.
